Professional Control Flexible Wire Cable Eco Friendly CE KEMA Certification
Descriptions:
Conductor: Flexible Copper Conductor
Insualtion: PVC

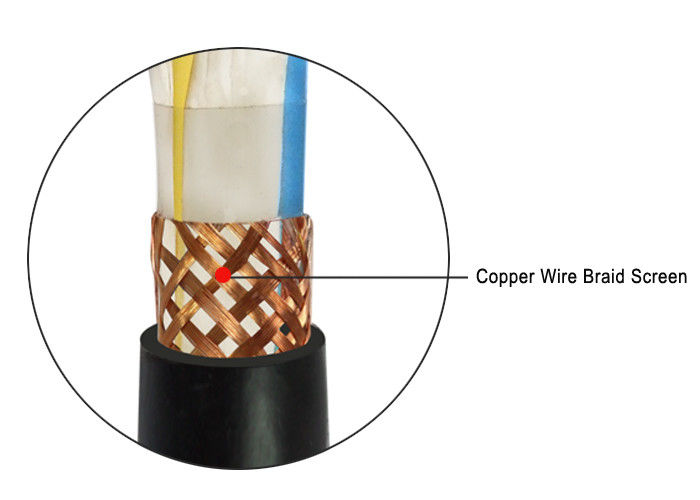

Screen: Tinned Copper Wire Brain Screen
Sheath: PVC
Operating characteristics
Rated voltage: U0 / U is 450 / 750V.
Conductor wire core long-term working temperature is 70 ℃, 95 ℃ two types of cable laying temperature not lower than 0 ℃.
Recommended cable bending radius as follows:
Non-armored cable should be not less than 6 times the cable diameter;
Armor or copper tape shielded cable, shall not be less than 12 times the cable diameter;
Shielded flexible cable, not less than 6 times the cable diameter
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for industrial and mining enterprises, energy and transportation sectors, for rated voltage 450/750 volts control, protection PVC insulated lines and other occasions, and PVC sheathed control cable.
Why We Choose Tinned Copper Wire Screen
Softer, Have Better mechanical and anti-oxidation properties, easier to weld than Copper Wire Screen.
