| ปริมาณการสั่งซื้อขั้นต่ำ: | 1000m |
| ราคา: | USD 0.4 To 10.5 per Meter |
| การบรรจุแบบมาตรฐาน: | กลองเหล็กไม้ |
| ระยะเวลาการจัดส่ง: | 10-15 วัน |
| ความสามารถในการจําหน่าย: | 8KM ต่อวัน |

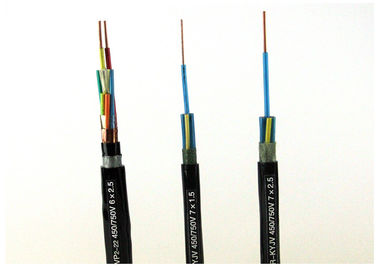

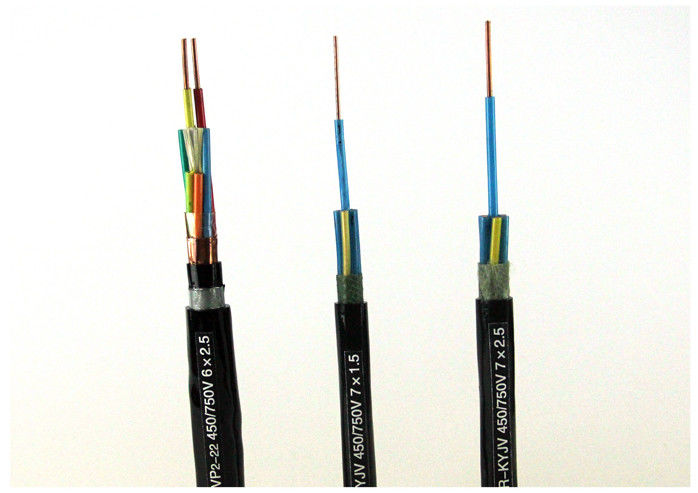

Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection
Descriptions:
Conductor: Solid or Stranded Copper Conductor
Insualtion: PVC
Screen: Copper Tape
Inner Sheath: PVC
Armor: Steel Tape
Sheath: PVC
Operating characteristics
Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
PVC insulated: 160°C;
Ambient temperature of installation not less than 0°C.
Application:
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Technology Data
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Thickness of Copper tape Screen mm |
Thickness of Steel Tape mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | ||||||||
| 4x2.5 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 13.5 | 16.2 | 0.001 | 7.41 | 470 |
| 4x4 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 14.5 | 17.5 | 0.0085 | 4.61 | 525 |
| 4x6 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 15.7 | 18.9 | 0.007 | 3.08 | 640 |
| 4x10 | 1 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 19.5 | 23.6 | 0.0065 | 1.83 | 970 |
| 5x2.5 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 14.4 | 17.3 | 0.001 | 7.41 | 526 |
| 5x4 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 15.5 | 18.7 | 0.0085 | 4.61 | 606 |
| 5x6 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 16.8 | 20.3 | 0.007 | 3.08 | 757 |
| 5x10 | 1 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 21.2 | 25.5 | 0.0065 | 1.83 | 1145 |
| 7x0.75 | 0.6 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 11.9 | 14.3 | 0.012 | 24.5 | 337 |
| 7x1.0 | 0.6 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 12.3 | 14.7 | 0.011 | 18.1 | 445 |
| 7x2.5 | 0.7 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 13.3 | 16.2 | 0.01 | 7.41 | 574 |
| 7x4 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 15.3 | 18.5 | 0.0085 | 4.61 | 723 |
| 7x6 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 18.1 | 21.8 | 0.007 | 3.08 | 930 |
| 7x10 | 1 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 22.8 | 27.4 | 0.0065 | 1.83 | 1430 |
| 10x0.75 | 0.6 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 13.9 | 16.8 | 0.012 | 24.5 | 470 |
| 10x1 | 0.6 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 14.5 | 17.5 | 0.011 | 18.1 | 580 |
| 10x1.5 | 0.7 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 16.2 | 19.6 | 0.011 | 12.1 | 780 |
| 10x2.5 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 18.9 | 22.8 | 0.01 | 7.41 | 986 |
| 10x4 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 20.6 | 24.9 | 0.0085 | 4.61 | 1256 |
| 10x6 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 22.6 | 27.2 | 0.007 | 3.08 | 1589 |
