| ปริมาณการสั่งซื้อขั้นต่ำ: | 1000m |
| ราคา: | USD 0.4 To 10.5 per Meter |
| การบรรจุแบบมาตรฐาน: | กลองเหล็กไม้ |
| ระยะเวลาการจัดส่ง: | 10-15 วัน |
| ความสามารถในการจําหน่าย: | 8KM ต่อวัน |

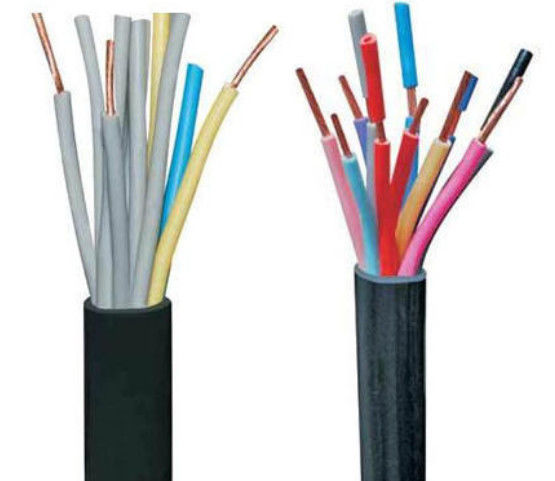

Copper Conductor PVC Insulated Multicore Control Cables , Steel Wire Armored Cable
Descriptions:
Conductor: Solid or Stranded Copper Conductor
Insualtion: PVC
Inner Sheath: PVC
Armor: Steel Wire
Sheath: PVC
Operating characteristics
Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
PVC insulated: 160°C;
Ambient temperature of installation not less than 0°C.
Test voltage: 3KV/5min
Bending Radius
Min. Bending Radius: 12 O.D.
Application:
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifacations
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Diameter of Steel Wire mm |
Thickness of Sheath mm |
Overall Diameter mm |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | ||||||
| 7x1.5 | 0.7 | 1.6 | 1.8 | 17.5 | 18.7 | 12.1 | 719 |
| 7x2.5 | 0.8 | 1.6 | 1.8 | 19.3 | 19.9 | 7.41 | 881 |
| 7x4 | 0.8 | 1.6 | 1.8 | 21.2 | 22.6 | 4.61 | 1068 |
| 7x6 | 0.8 | 1.6 | 1.8 | 22.7 | 24.1 | 3.08 | 1288 |
| 7x10 | 1 | 2 | 1.9 | 28.6 | 29 | 1.83 | 2055 |
| 8x1.5 | 0.7 | 1.6 | 1.8 | 18.4 | 19.6 | 12.1 | 780 |
| 8x2.5 | 0.8 | 1.6 | 1.8 | 20.8 | 21 | 7.41 | 982 |
| 8x4 | 0.8 | 2 | 1.8 | 23.1 | 24.6 | 4.61 | 1355 |
| 8x6 | 0.8 | 2 | 1.8 | 24.8 | 26.3 | 3.08 | 1586 |
| 8x10 | 1 | 2 | 1.9 | 30.4 | 30.8 | 1.83 | 2261 |
| 10x1.5 | 0.7 | 1.6 | 1.8 | 20.7 | 21.7 | 12.1 | 927 |
| 10x4 | 0.8 | 2 | 1.8 | 23.9 | 24.1 | 4.61 | 1575 |
| 10x6 | 0.8 | 2 | 1.9 | 27.8 | 29.8 | 3.08 | 1886 |
| 10x10 | 1 | 2 | 2.1 | 35.2 | 35.4 | 1.83 | 2767 |
| 12x1.5 | 1 | 1.6 | 1.8 | 21.1 | 22.2 | 12.1 | 985 |
| 12x2.5 | 0.6 | 2 | 1.8 | 24.4 | 24.6 | 4.61 | 1411 |
| 12x4 | 0.7 | 2 | 1.8 | 26.4 | 28.3 | 3.08 | 1698 |
| 12x6 | 0.8 | 2 | 1.9 | 28.5 | 30.6 | 1.83 | 2052 |
