| ปริมาณการสั่งซื้อขั้นต่ำ: | 1000m |
| ราคา: | USD 0.4 To 10.5 per Meter |
| การบรรจุแบบมาตรฐาน: | กลองเหล็กไม้ |
| ระยะเวลาการจัดส่ง: | 10-15 วัน |
| ความสามารถในการจําหน่าย: | 8KM ต่อวัน |

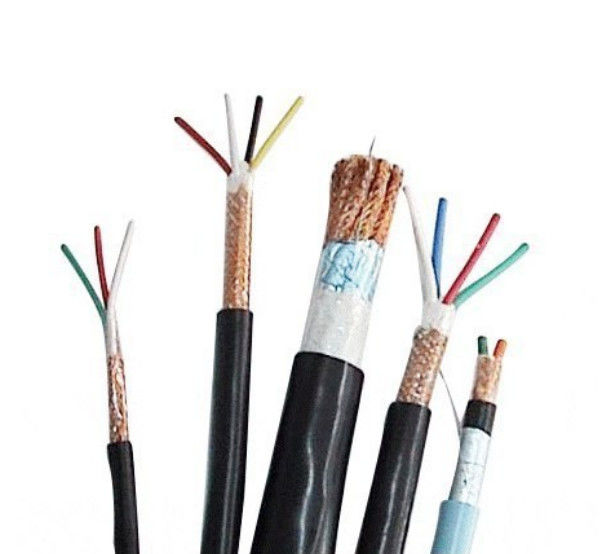

Flame Retardant PVC Sheathed Control Cables , Steel Tape Armoured Cable
Descriptions:
Conductor: Solid or Stranded Copper Conductor
Insualtion: XLPE
Inner Sheath: PVC
Armor: Steel Tape
Sheath: Flame Retardant PVC
The advantage of Flame Retardant Cable
In the event of fire, protect people's lives and property safety,reduce the losses.
Operating characteristics
Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
PVC insulated: 160°C;
Ambient temperature of installation not less than 0°C.
Application:
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Thickness of Steel Tape mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | |||||||
| 4x2.5 | 0.8 | 2x0.2(0.3) | 1.5 | 13.4 | 16.1 | 0.001 | 7.41 | 450 |
| 4x4 | 0.8 | 2x0.2(0.3) | 1.5 | 14.4 | 17.4 | 0.0085 | 4.61 | 505 |
| 4x6 | 0.8 | 2x0.2(0.3) | 1.5 | 15.6 | 18.8 | 0.007 | 3.08 | 619 |
| 4x10 | 1 | 2x0.2(0.3) | 1.7 | 19.4 | 23.5 | 0.0065 | 1.83 | 947 |
| 5x2.5 | 0.8 | 2x0.2(0.3) | 1.5 | 14.3 | 17.2 | 0.001 | 7.41 | 506 |
| 5x4 | 0.8 | 2x0.2(0.3) | 1.5 | 15.4 | 18.6 | 0.0085 | 4.61 | 586 |
| 5x6 | 0.8 | 2x0.2(0.3) | 1.7 | 16.7 | 20.2 | 0.007 | 3.08 | 737 |
| 5x10 | 1 | 2x0.2(0.3) | 1.7 | 21 | 25.4 | 0.0065 | 1.83 | 1125 |
| 7x0.75 | 0.6 | 2x0.2(0.3) | 1.5 | 11.8 | 14.2 | 0.012 | 24.5 | 317 |
| 7x1.0 | 0.6 | 2x0.2(0.3) | 1.5 | 12.2 | 14.7 | 0.011 | 18.1 | 425 |
| 7x2.5 | 0.7 | 2x0.2(0.3) | 1.5 | 13.5 | 16.3 | 0.01 | 7.41 | 554 |
| 7x4 | 0.8 | 2x0.2(0.3) | 1.5 | 15.2 | 18.4 | 0.0085 | 4.61 | 701 |
| 7x6 | 0.8 | 2x0.2(0.3) | 1.7 | 18 | 21.7 | 0.007 | 3.08 | 900 |
| 7x10 | 1 | 2x0.2(0.3) | 1.7 | 22.7 | 27.4 | 0.0065 | 1.83 | 1397 |
| 10x0.75 | 0.6 | 2x0.2(0.3) | 1.5 | 13.8 | 16.7 | 0.012 | 24.5 | 449 |
| 10x1 | 0.6 | 2x0.2(0.3) | 1.5 | 14.4 | 17.4 | 0.011 | 18.1 | 558 |
| 10x1.5 | 0.7 | 2x0.2(0.3) | 1.5 | 16.1 | 19.5 | 0.011 | 12.1 | 753 |
| 10x2.5 | 0.8 | 2x0.2(0.3) | 1.7 | 18.8 | 22.7 | 0.01 | 7.41 | 956 |
| 10x4 | 0.8 | 2x0.2(0.3) | 1.7 | 20.5 | 24.8 | 0.0085 | 4.61 | 1203 |
| 10x6 | 0.8 | 2x0.2(0.3) | 1.7 | 22.5 | 27.1 | 0.007 | 3.08 | 1534 |
