| ปริมาณการสั่งซื้อขั้นต่ำ: | 0.5 กม |
| ราคา: | 0.10-30.99USD/m |
| การบรรจุแบบมาตรฐาน: | ถังไม้หรือถังเหล็ก |
| ระยะเวลาการจัดส่ง: | 10 วันขึ้นไป |
| วิธีการจ่ายเงิน: | L/c, D/A, D/P, T/T ตะวันตกสหภาพ MoneyGram |
| ความสามารถในการจําหน่าย: | 1,000 กม. ต่อเดือน |

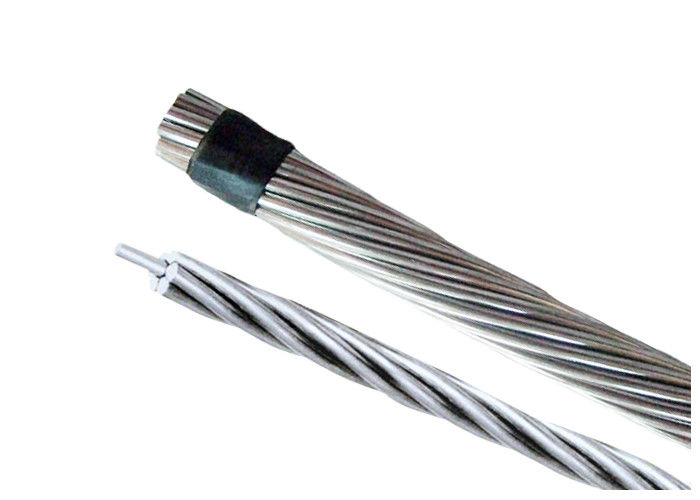

Professional Overhead Bare Conductors , All Aluminium Conductor AAC Cicada
1 Application
The bare conductor:AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.
| Type | Description | No. of Wire |
Section Area (mm2) |
| AAC | All Aluminum Conductor | 7~127 | 16~1500 |
| AAAC | All Aluminum Alloy Conductor | 7~91 | 17~1300 |
| ACSR |
Aluminum Conductors Steel Reinforced |
7~103 | 16~1250 |
| AACSR |
Aluminum Alloy Conductors Steel Reinforced |
7~103 | 16~1250 |
| ACAR/AW |
Aluminum Conductors Aluminum Alloy Reinforced |
7~103 | 16~1250 |
| ACSW/S |
Aluminum Conductors Aluminum Clad Steel Wire/Strand |
7~103 | 16~1250 |
| GSW | Galvanized Steel Wire | 3/2.64~37/4.55 | 16.41~765.99 |
Standards:
All the products can perfectly meet requests of different standards. we can design and manufacture special cables according to the required standards of customers, such as: EN, GB, IEC, BS, ASTM, JIS, DIN CRS.
| AAC | EN 51082 | |||||||
| Area | No. of | Diameter | Mass per unit | Rated | DC | |||
| Code Name | wires | Wire | Cond. | length | strength | Resistance | ||
| mm2 | mm | mm | kg/km | kN | Ω/km | |||
| Midge | 23.3 | 7 | 2.06 | 6.18 | 63.8 | 4.20 | 1.2249 | |
| Gnat | 26.9 | 7 | 2.21 | 6.63 | 73.4 | 4.83 | 1.0643 | |
| Mosquito | 36.9 | 7 | 2.59 | 7.77 | 100.8 | 6.27 | 0.7749 | |
| Ladybird | 42.8 | 7 | 2.79 | 8.37 | 117.0 | 7.28 | 0.6678 | |
| Ant | 52.8 | 7 | 3.10 | 9.30 | 144.4 | 8.72 | 0.5409 | |
| Fly | 63.6 | 7 | 3.40 | 10.2 | 173.7 | 10.49 | 0.4497 | |
| Bluebottle | 73.6 | 7 | 3.66 | 11.0 | 201.3 | 11.78 | 0.3880 | |
| Earwig | 78.6 | 7 | 3.78 | 11.3 | 214.7 | 12.57 | 0.3638 | |
| Grasshopper | 84.1 | 7 | 3.91 | 11.7 | 229.7 | 13.45 | 0.3400 | |
| Clegg | 95.6 | 7 | 4.17 | 12.5 | 261.3 | 15.30 | 0.2989 | |
| Wasp | 106.0 | 7 | 4.39 | 13.2 | 289.6 | 16.95 | 0.2697 | |
| Beetle | 106.4 | 19 | 2.67 | 13.4 | 292.4 | 18.08 | 0.2701 | |
| Bee | 132.0 | 7 | 4.90 | 14.7 | 360.8 | 21.12 | 0.2165 | |
| Hornet | 157.6 | 19 | 3.25 | 16.3 | 433.2 | 26.01 | 0.1823 | |
| Caterpillar | 185.9 | 19 | 3.53 | 17.7 | 511.1 | 29.75 | 0.1546 | |
| Chafer | 213.2 | 19 | 3.78 | 18.9 | 586.0 | 34.12 | 0.1348 | |
| Spider | 237.6 | 19 | 3.99 | 20.0 | 652.9 | 38.01 | 0.1210 | |
| Cockroach | 265.7 | 19 | 4.22 | 21.1 | 730.4 | 42.52 | 0.1081 | |
| Butterfly | 322.7 | 19 | 4.65 | 23.3 | 886.8 | 51.63 | 0.0891 | |
| Moth | 373.1 | 19 | 5.00 | 25.0 | 1025.3 | 59.69 | 0.0770 | |
| Drone | 372.4 | 37 | 3.58 | 25.1 | 1027.1 | 59.59 | 0.0774 | |
| Centipede | 415.2 | 37 | 3.78 | 26.5 | 1145.1 | 66.43 | 0.0695 | |
| Maybug | 486.1 | 37 | 4.09 | 28.6 | 1340.6 | 77.78 | 0.0593 | |
| Scorpion | 529.8 | 37 | 4.27 | 29.9 | 1461.2 | 84.77 | 0.0544 | |
| Cicada | 628.3 | 37 | 4.65 | 32.6 | 1732.9 | 100.54 | 0.0459 | |
|
|
