| ปริมาณการสั่งซื้อขั้นต่ำ: | 0.5 กม |
| ราคา: | 0.19-10.99USD |
| การบรรจุแบบมาตรฐาน: | ถังไม้ / ถังเหล็ก |
| ระยะเวลาการจัดส่ง: | 15 วันขึ้นไป |
| วิธีการจ่ายเงิน: | L/c, D/A, D/P, T/T ตะวันตกสหภาพ MoneyGram |
| ความสามารถในการจําหน่าย: | 50000 กิโลเมตรต่อเดือน |

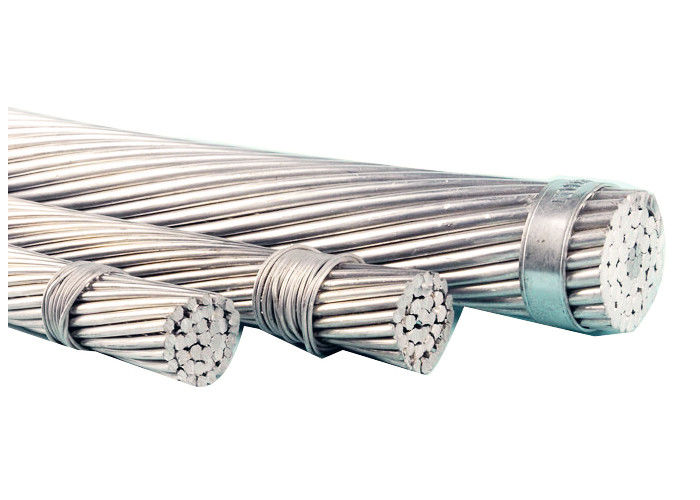

AAC All Aluminium Conductor Creep Resistance High Tension Strength
Specifications
AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
| AAC |
| EN 51082 | ||||||||
| Area | No. of | Diameter | Mass per unit | Rated | DC | |||
| Code Name | wires | Wire | Cond. | length | strength | Resistance | ||
| mm2 | mm | mm | kg/km | kN | Ω/km | |||
| Midge | 23.3 | 7 | 2.06 | 6.18 | 63.8 | 4.20 | 1.2249 | |
| Gnat | 26.9 | 7 | 2.21 | 6.63 | 73.4 | 4.83 | 1.0643 | |
| Mosquito | 36.9 | 7 | 2.59 | 7.77 | 100.8 | 6.27 | 0.7749 | |
| Ladybird | 42.8 | 7 | 2.79 | 8.37 | 117.0 | 7.28 | 0.6678 | |
| Ant | 52.8 | 7 | 3.10 | 9.30 | 144.4 | 8.72 | 0.5409 | |
| Fly | 63.6 | 7 | 3.40 | 10.2 | 173.7 | 10.49 | 0.4497 | |
| Bluebottle | 73.6 | 7 | 3.66 | 11.0 | 201.3 | 11.78 | 0.3880 | |
| Earwig | 78.6 | 7 | 3.78 | 11.3 | 214.7 | 12.57 | 0.3638 | |
| Grasshopper | 84.1 | 7 | 3.91 | 11.7 | 229.7 | 13.45 | 0.3400 | |
| Clegg | 95.6 | 7 | 4.17 | 12.5 | 261.3 | 15.30 | 0.2989 | |
| Wasp | 106.0 | 7 | 4.39 | 13.2 | 289.6 | 16.95 | 0.2697 | |
| Beetle | 106.4 | 19 | 2.67 | 13.4 | 292.4 | 18.08 | 0.2701 | |
| Bee | 132.0 | 7 | 4.90 | 14.7 | 360.8 | 21.12 | 0.2165 | |
| Hornet | 157.6 | 19 | 3.25 | 16.3 | 433.2 | 26.01 | 0.1823 | |
| Caterpillar | 185.9 | 19 | 3.53 | 17.7 | 511.1 | 29.75 | 0.1546 | |
| Chafer | 213.2 | 19 | 3.78 | 18.9 | 586.0 | 34.12 | 0.1348 | |
| Spider | 237.6 | 19 | 3.99 | 20.0 | 652.9 | 38.01 | 0.1210 | |
| Cockroach | 265.7 | 19 | 4.22 | 21.1 | 730.4 | 42.52 | 0.1081 | |
| Butterfly | 322.7 | 19 | 4.65 | 23.3 | 886.8 | 51.63 | 0.0891 | |
| Moth | 373.1 | 19 | 5.00 | 25.0 | 1025.3 | 59.69 | 0.0770 | |
| Drone | 372.4 | 37 | 3.58 | 25.1 | 1027.1 | 59.59 | 0.0774 | |
| Centipede | 415.2 | 37 | 3.78 | 26.5 | 1145.1 | 66.43 | 0.0695 | |
| Maybug | 486.1 | 37 | 4.09 | 28.6 | 1340.6 | 77.78 | 0.0593 | |
| Scorpion | 529.8 | 37 | 4.27 | 29.9 | 1461.2 | 84.77 | 0.0544 | |
| Cicada | 628.3 | 37 | 4.65 | 32.6 | 1732.9 | 100.54 | 0.0459 | |
