| ปริมาณการสั่งซื้อขั้นต่ำ: | 1000m |
| ราคา: | USD 0.4 To 10.5 per Meter |
| การบรรจุแบบมาตรฐาน: | กรณีไม้ |
| ระยะเวลาการจัดส่ง: | 10-15 วัน |
| ความสามารถในการจําหน่าย: | 8KM ต่อวัน |

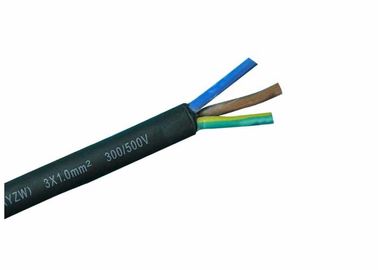

Flexible Copper Conductor Rubber Insulation and Sheath Cable YZW 300/500V 1.5mm - 400mm Rubber Sheathed Cable
Application
This product is suitable for rated ac voltage 450/750v or below domestic appliaces,power-operated tools and various portable electric equipments.
Operation character
1) 60245IEC53(YZ),60245IEC57(YZW), model rated voltage Uo/U is 300/500V, 60245IEC66(YCW),YC rated voltage Uo/U is 450/750V.
2)Long time allow working temperature of wire core is not more than 65℃.
3)W model cable has the property of durability and suitable for cutdoor touching of greasy dirt.
4)ZR model cable has the property of fire-resistance.
Model name and usage
| Model No. | Product Name | Applications |
| YQ,YQW | Light model rubber sheath flexible cable | Used for light portable electric equipment and tools |
| YZ, YZW | Middle model rubber sheath flexible cable | Used for various portable electric equipment and tools |
| YC. YCW | Heavy model rubber sheath flexible cable | Used for various portable electric equipment which can bear large mechanical force effect |
Certificate
CE, RoHS, CCC, KEMA and more others at request
Insulation Color
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow
Sheath Color
Black
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
Size, weight and technological date
300/300V YQ/YQW light model
| Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
| min | max | ||||||
| 2x0.3 | 16/0.15 | 4.3 | 5.8 | 69.2 | 71.2 | 30 | 31.5 |
| 2x0.5 | 28/0.15 | 4.8 | 6.4 | 39 | 40.1 | 43 | 45.5 |
| 3x0.3 | 16/0.15 | 4.6 | 6.1 | 69.2 | 71.2 | 36 | 38.5 |
| 3x0.5 | 28/0.15 | 5.1 | 6.7 | 39 | 40.1 | 74 | 77 |
300/500V YZ/YZW medium model
| Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
| min | max | Copper | Tinned-Copper | YZ | YZW | ||
| 2x0.75 | 24/0.2 | 5.7 | 7.4 | 26 | 26.7 | 81.7 | 89.6 |
| 2x1 | 32/0.2 | 6.1 | 8 | 19.7 | 20 | 123 | 138 |
| 2x1.5 | 16/0.25 | 7.6 | 9.8 | 13.3 | 13.7 | 185 | 196 |
| 2x2.5 | 28/0.25 | 9 | 11.6 | 7.98 | 8.21 | 234 | 252 |
| 2x4 | 56/0.3 | 10.6 | 13.7 | 4.95 | 5.09 | 255 | 276 |
| 2x6 | 84/0.3 | 11.8 | 15.1 | 3.3 | 3.39 | 356 | 371 |
| 3x0.75 | 24/0.2 | 6.2 | 8.1 | 26 | 26.7 | 97.4 | 105 |
| 3x1 | 32/0.2 | 6.5 | 8.5 | 19.7 | 20 | 112 | 126 |
| 3x1.5 | 16/0.25 | 8 | 10.4 | 13.3 | 13.7 | 156 | 174 |
| 3x2.5 | 28/0.25 | 9.6 | 12.4 | 7.98 | 8.21 | 204 | 2019 |
| 3x4 | 56/0.3 | 11.3 | 14.5 | 4.95 | 5.09 | 285 | 302 |
| 3x6 | 84/0.3 | 12.6 | 16.1 | 3.3 | 3.39 | 398 | 423 |
| 4x0.75 | 24/0.2 | 6.8 | 8.8 | 26 | 26.7 | 117 | 125 |
| 4x1 | 32/0.2 | 7.1 | 9.3 | 19.7 | 20 | 134 | 148 |
| 4x1.5 | 16/0.25 | 9 | 11.6 | 13.3 | 13.7 | 186 | 206 |
| 4x2.5 | 28/0.25 | 10.7 | 13.8 | 7.98 | 8.21 | 255 | 270 |
| 4x4 | 56/0.3 | 12.7 | 13.8 | 4.95 | 5.09 | 356 | 374 |
| 4x6 | 84/0.3 | 14 | 17.9 | 3.3 | 3.39 | 465 | 482 |
|
|
