| ปริมาณการสั่งซื้อขั้นต่ำ: | 500 |
| ราคา: | USD1.5-200 |
| การบรรจุแบบมาตรฐาน: | กลองไม้ |
| ระยะเวลาการจัดส่ง: | 12 วันทำการ |
| ความสามารถในการจําหน่าย: | 30000 / เดือน |

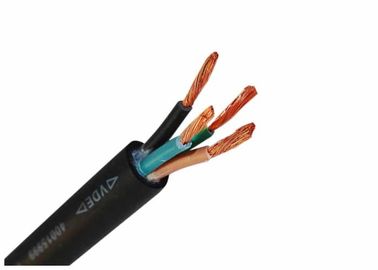

Constructions
Conductor: plain annealed copper
Insulation:rubber
Outer sheath:rubber
Note: Insulation color as per standards or at request
Applications
The product is suitable for use in connection lines or fixed installation of power tools, a variety of portable electrical equipment, welding and welding clamp with rated power frequency voltage up to and including 450/750V.
Standards
International: IEC245-1980
Chinese: GB5013.1.2.3-85
Other standards such as BS,DIN and ICEA upon request
Technical data
The allowed operating temperature of the core is 65°C when U0/U is 0.66/1.14kV and below, 85°C when U0/U is 3.6/6kV
Min. bending radius is six times the size of cable diameter
The yellow sheath cable should not be exposed in the sun for long time
Coal Mining Machine Cable:The cables are suitable for coal mining machine and similar equipment as power connecting cable.
Certificates
CE, RoHS, CCC, KEMA and more others at request
| Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
| min | max | Copper | Tinned-Copper | YZ | YZW | ||
| 2x0.75 | 24/0.2 | 5.7 | 7.4 | 26 | 26.7 | 81.7 | 89.6 |
| 2x1 | 32/0.2 | 6.1 | 8 | 19.7 | 20 | 123 | 138 |
| 2x1.5 | 16/0.25 | 7.6 | 9.8 | 13.3 | 13.7 | 185 | 196 |
| 2x2.5 | 28/0.25 | 9 | 11.6 | 7.98 | 8.21 | 234 | 252 |
| 2x4 | 56/0.3 | 10.6 | 13.7 | 4.95 | 5.09 | 255 | 276 |
| 2x6 | 84/0.3 | 11.8 | 15.1 | 3.3 | 3.39 | 356 | 371 |
| 3x0.75 | 24/0.2 | 6.2 | 8.1 | 26 | 26.7 | 97.4 | 105 |
| 3x1 | 32/0.2 | 6.5 | 8.5 | 19.7 | 20 | 112 | 126 |
| 3x1.5 | 16/0.25 | 8 | 10.4 | 13.3 | 13.7 | 156 | 174 |
| 3x2.5 | 28/0.25 | 9.6 | 12.4 | 7.98 | 8.21 | 204 | 2019 |
| 3x4 | 56/0.3 | 11.3 | 14.5 | 4.95 | 5.09 | 285 | 302 |
| 3x6 | 84/0.3 | 12.6 | 16.1 | 3.3 | 3.39 | 398 | 423 |
| 4x0.75 | 24/0.2 | 6.8 | 8.8 | 26 | 26.7 | 117 | 125 |
| 4x1 | 32/0.2 | 7.1 | 9.3 | 19.7 | 20 | 134 | 148 |
| 4x1.5 | 16/0.25 | 9 | 11.6 | 13.3 | 13.7 | 186 | 206 |
| 4x2.5 | 28/0.25 | 10.7 | 13.8 | 7.98 | 8.21 | 255 | 270 |
| 4x4 | 56/0.3 | 12.7 | 13.8 | 4.95 | 5.09 | 356 | 374 |
| 4x6 | 84/0.3 | 14 | 17.9 | 3.3 | 3.39 | 465 | 482 |
