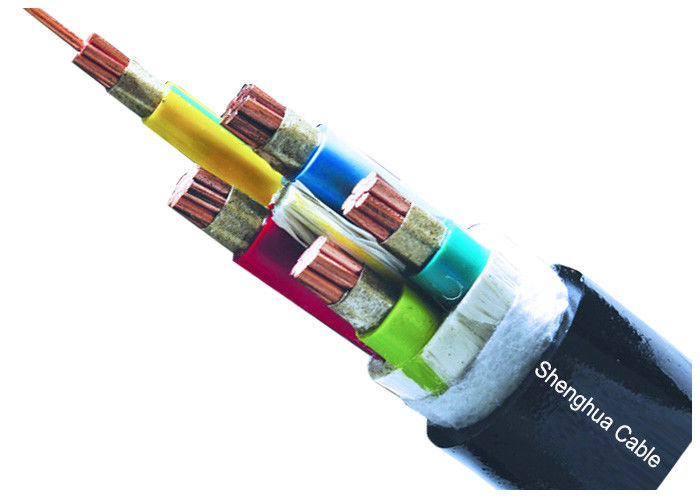

Fire Resistant No Halogen Power Cable Copper Conductor Power Cable Rated Voltage 0.6 / 1kV

Fire Resistant No Halogen Power Cable Copper Conductor Power Cable Rated Voltage 0.6 / 1kV

ปริมาณการสั่งซื้อขั้นต่ำ: 200M
ราคา: 0.38-25.6
การบรรจุแบบมาตรฐาน: กลองไม้หรือกรณี
ระยะเวลาการจัดส่ง: ตามกำหนดเวลา
วิธีการจ่ายเงิน: L/C, T/T
ความสามารถในการจําหน่าย: 500km / เดือน
ข้อมูลรายละเอียด
สถานที่กำเนิด
จีน
ชื่อแบรนด์
QINGDAO YICABLE CABLE
ได้รับการรับรอง
CE/KEMA
วัสดุฉนวน:
XLPE / พีวีซี
ชนิด:
แรงดันไฟฟ้าต่ำกว่า 0.6 / 1kV
สีฉนวน:
ส้มหรือไม่ก็ได้
ฟังก์ชัน:
ทนไฟ
ตัวอย่าง:
มีจำหน่ายสำหรับ 1-1.5m
ใบสมัคร:
ระบบส่งกำลัง
เน้น:

low smoke zero halogen wire

,

xlpe lszh cable

คำอธิบายผลิตภัณฑ์

Fire Resistant No Halogen Power CableCopper Conductor Power Cable Rated Voltage 0.6/1kV





Specifications

0.6/1kV N2XH (with mica glass tape)
Construction: ** Cu/MGT/XLPE/HFLS



Single core Halogen Free, Low Smoke and Fire Resistant Power cable

0.6/1kV N2XH (with mica glass tape)
Construction: ** Cu/MGT/XLPE/HFLS
Conductor: Solid or strand copper
Fire barrier: Mica glass tape (over conductor)
Insulation: XLPE
Outer sheath: Halogen free and low smoke
Standard: IEC60228, IEC60552, IEC60332

Number of cores x cross section Insulation thickness Sheath thickness Overall diameter Max. Conductor resistance Inductance
DC at 20°C AC at 70°C
No. xmm2 mm mm mm ohm/km ohm/km mH/Km
N2XH (Single Core Power Cables with Mica Glass Tape)
1 x 1.5 RE 0.7 1.4 6.2 12.1 15.4 0.458
1 x 1.5 RM 0.7 1.4 6.4 12.1 15.4 0.458
1 x 2.5 RE 0.7 1.4 6.6 7.41 9.45 0.439
1 x 2.5 RM 0.7 1.4 6.8 7.41 9.45 0.439
1 x 4 RE 0.7 1.4 7.0 4.61 5.88 0.420
1 x 4 RM 0.7 1.4 7.3 4.61 5.88 0.420
1 x 6 RE 0.7 1.4 7.5 3.08 3.93 0.394
1 x 6 RM 0.7 1.4 8.0 3.08 3.93 0.394
1 x 10 RE 0.7 1.4 8.3 1.83 2.33 0.366
1 x 10 RM 0.7 1.4 8.8 1.83 2.33 0.366
1 x 16 RM 0.7 1.4 10.0 1.15 1.47 0.341
1 x 25 RM 0.9 1.4 12.0 0.727 0.923 0.325
1 x 35 RM 0.9 1.4 13.0 0.524 0.668 0.311
1 x 50 RM 1.0 1.4 14.5 0.387 0.494 0.302
1 x 70 RM 1.1 1.5 16.5 0.268 0.342 0.291
1 x 95 RM 1.1 1.5 18.5 0.193 0.247 0.284
1 x 120 RM 1.2 1.6 20.5 0.153 0.196 0.279

Fire Resistant No Halogen Power Cable Copper Conductor Power Cable Rated Voltage 0.6 / 1kV 0
