| ปริมาณการสั่งซื้อขั้นต่ำ: | 500m |
| ราคา: | negotiable |
| การบรรจุแบบมาตรฐาน: | กลองเหล็กบรรจุไม้ (มีการป้องกัน) |
| ระยะเวลาการจัดส่ง: | 10-15 วันทำการหลังจากได้รับการชำระเงินของคุณ |
| วิธีการจ่ายเงิน: | T/T หรือ LC |
| ความสามารถในการจําหน่าย: | 100km ต่อเดือน |

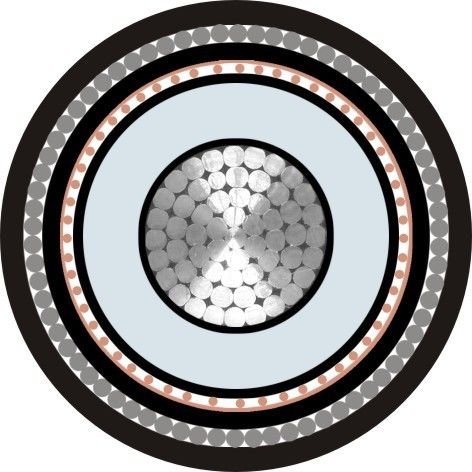

Distribution Lines Armoured Electrical Cable , Aluminium Armored Cable
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Aluminum wire
Sheath : PVC type ST2 to IEC 60502, black
CODE Designation:
YJ: XLPE insulation
V: PVC sheath
72: Aluminum wire armoring
Applications:
Suitable for use in power distribution lines with rated voltage 3.6/6KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and moderate pulling force.
Standards:
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data:
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D
Certificates:
CE, RoHS, CCC, KEMA and more others at request
Brief technical Specification:
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Sheath Thickness | Dia. Of Armor Wire | Sheath Thickness | Approx. O.D. | Approx. Weight |
| mm2 | pc/mm | mm | mm | mm | mm | (mm) | kg/km |
| 1 × 25 | 7/2.14 | 2.5 | 1.2 | 1.6 | 1.8 | 24.0 | 1396 |
| 1 × 35 | 7/2.52 | 2.5 | 1.2 | 1.6 | 1.8 | 25.0 | 1550 |
| 1 × 50 | 10/2.52 | 2.5 | 1.2 | 1.6 | 1.8 | 26.0 | 1754 |
| 1 × 70 | 14/2.52 | 2.5 | 1.2 | 1.6 | 1.9 | 28.0 | 2054 |
| 1 × 95 | 19/2.52 | 2.5 | 1.2 | 1.6 | 1.9 | 29.0 | 2367 |
| 1 × 120 | 24/2.52 | 2.5 | 1.2 | 1.6 | 2.0 | 31.0 | 2701 |
| 1 × 150 | 30/2.52 | 2.5 | 1.2 | 2.0 | 2.0 | 33.0 | 3301 |
| 1 × 185 | 37/2.52 | 2.5 | 1.2 | 2.0 | 2.1 | 35.0 | 3756 |
| 1 × 240 | 48/2.52 | 2.6 | 1.2 | 2.0 | 2.2 | 38.0 | 4458 |
| 1 × 300 | 61/2.52 | 2.8 | 1.2 | 2.0 | 2.3 | 40.0 | 5223 |
| 1 × 400 | 61/2.97 | 3.0 | 1.3 | 2.5 | 2.4 | 45.0 | 6804 |
| 1 × 500 | 61/3.23 | 3.2 | 1.3 | 2.5 | 2.5 | 50.0 | 8094 |
|
|
