| ปริมาณการสั่งซื้อขั้นต่ำ: | 500m |
| ราคา: | 0.3-99 USD/Meter |
| การบรรจุแบบมาตรฐาน: | กลองเหล็กไม้ |
| ระยะเวลาการจัดส่ง: | 15 วันทำการ |
| วิธีการจ่ายเงิน: | L / C, D / A, D / P, T / T |
| ความสามารถในการจําหน่าย: | 5,000KM ต่อเดือน |

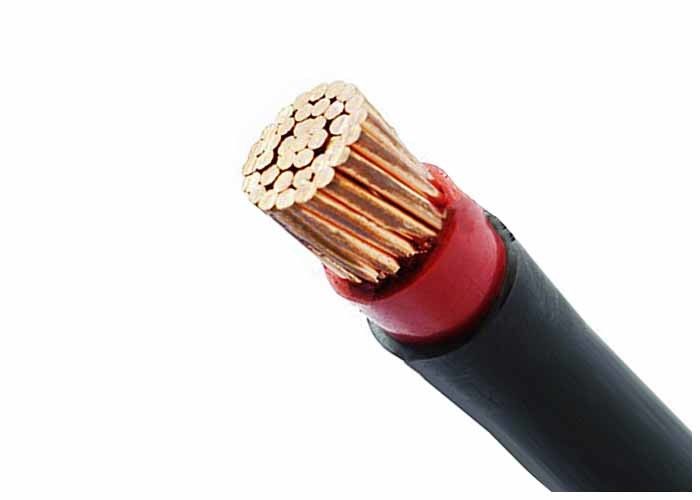

Single Core 0.6/1kV PVC Insulated Power Cable for Power Transmission KEMA
Application
These power cable for fixed installations such as distribution networks or industrial installations.
Such as Plant engineering; Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc.
Construction
Conductor: Plain annealed copper, class 1 solid or class 2 stranded acc. to IEC 60228.
Flexible class 5 or tinned conductor could be offer upon request.
Insulation: Cross-linked polyethlene (XLPE) compound as per IEC 60502-1.
Outer Sheath: PVC ST8 (90°C) of IEC 60502-1.
Outer Sheath Colour: Black or other color as per customer request.
Electrical Characteristics
Recommended rated voltages U0
| Highest system voltage(Um) (kV) | Rated voltage (U0) (kV) | |
| Categories A and B | Category C | |
| 1,2 | 0,6 | 0,6 |
Routine test voltages
| Rated voltage U0 (kV) | 0,6 |
| Test voltage (kV) | 3,5 |
Maximum conductor temperatures for different types of insulating compound
| Maximum conductor temperature (°C) | |
| Normal operation | Short-circuit (5 s maximum duration) |
| 90 | 250 |
Operating Temperature: -15°C to 90°C
Test Voltage: 3.5 kV for 5 minutes
Installation Refference
Min.Bending Radius (mm): 8 x cable overall diameter
Max.Pulling Tension (N/mm2): 70
Reference Standards
Design: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC 60332-1, BS EN60332-1
|
|
